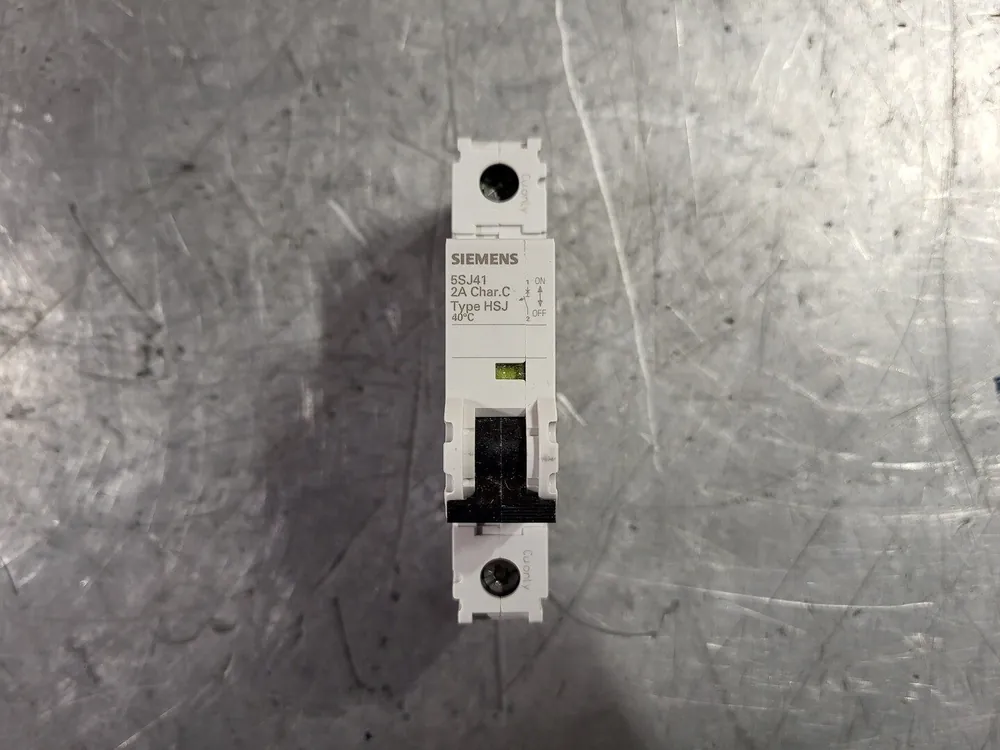

2 Amp, 1 Pole, 240 volts Circuit Breaker 5SJ4102-7HG40

Technical Data

RoHS-compliant: Yes

Nominal current – rounded value: 2 A

Nominal current: 2 A

Factory colour: Grey

Dim: (W x H x D) 18 x 90 x 70 mm

Depth: 70 mm

Height: 90 mm

Width: 18 mm

Compatible with (details): SENTRON

Switch-off capacity: 14 kA

Number of pins: 1

Release characteristics: C

Operating voltage: 240 V

Built-in depth: 70 mm

Rated current: 2 A

Rated voltage: 400 V

Frequency: 50-60 MHz

Over voltage category: 3

Pollution degree: 3

Width in number of modular spacings: 1

Number of protected poles: 1

Number of poles (total): 1

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 15 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 15 kA
