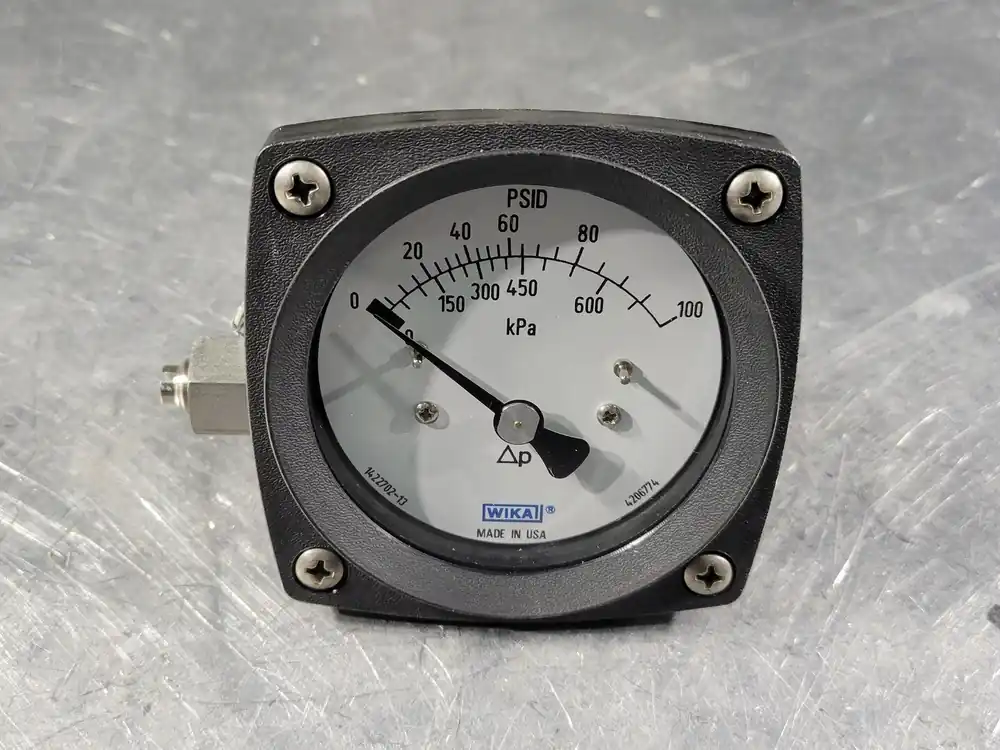

2.5″, 0-100 psi Differential Pressure Gauge 100 psi 700.04

Nominal Size: 2-1/2″

Accuracy: -/+2% of span (on increasing pressure)

Scale Range: 0/5 psid through 0/100 psid (0/350 mbard through 0/7 bard)

Maximum Working Pressure: 6000 psig (400 barg)

Operating Temperature: -40 deg. F to 200 deg. F (Ambient, Media)

Weather Protection: NEMA 4X

Pressure Connections:-

Standard: 1/4″ NPT female, back connection

Optional: 1/2″ NPT female, back connection, with adapters

Sensing Element, Internal Wetted Parts: Ceramic magnet and 316 SS

Sensor Block: Black anodized aluminum – standard, 316 SS – optional

Elastomers (O-rings): Viton- standard, Buna N or Ethylene propylene- optional

Case & Bezel: Fiberglass reinforced thermoplastic

Dial: White aluminum with black lettering

Pointer: Black aluminum

Window: Acrylic- standard, Laminated Safety glass- optional
