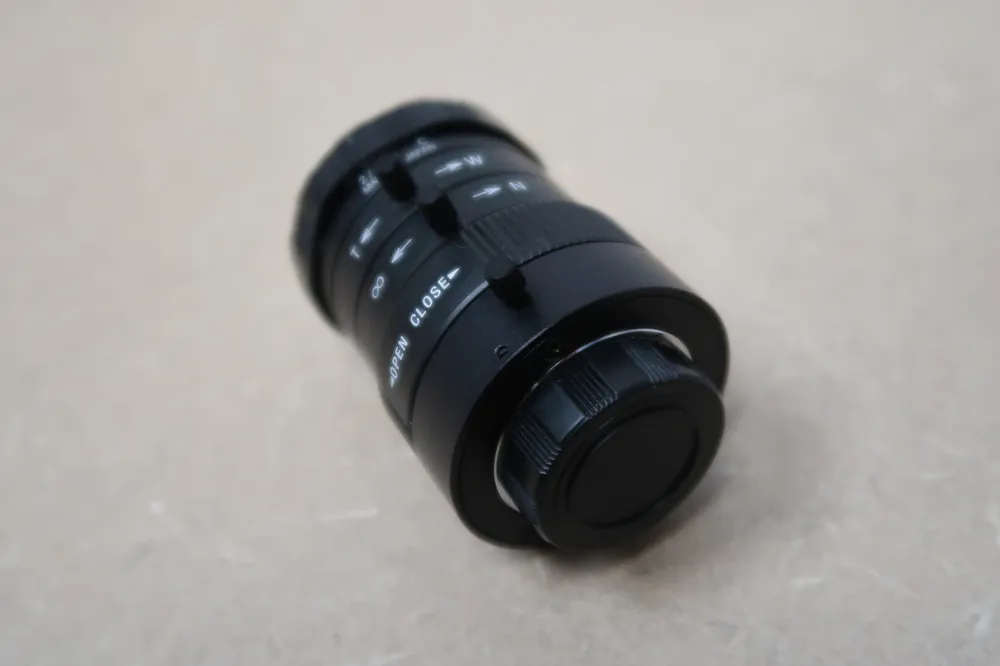

2/3″, 12-36mm, F2.8 Manual Iris Vari-Focal Megapixel Lens M3Z1228C-MP

Focal Length: 12mm – 36mm

Maximum Aperture Ratio: 1:2.8

Maximum Image Format: 8.8mm x 6.6mm

Operation Range:-

Iris: F2.8 – F16C

Focus: Tele: 0.2m – Inf., Wide: 0.05m – Inf.

Zoom: 12mm – 36mm

Control (Iris, Focus, Zoom): Manual

Object Dimension at M.O.D:-

12 mm (2/3 type): 4.0cm x 3.0cm

36 mm (2/3 type): 4.8cm x 3.6cm

Angle of View:-

2/3 Type: D: 50.4 – 16.8 deg.; H: 41.0 – 13.6 deg.; V: 31.2 – 10.4 deg.

1/2 Type: D: 37.5 – 12.5 deg.; H: 30.2 – 10.0 deg.; V: 22.8 – 7.6 deg.

1/3 Type: D: 28.3 – 9.4 deg.; H: 22.8 – 7.6 deg.; V: 17.1 – 5.7 deg.

Operating Temperature: -20 deg. C to 50 deg. C

Effective Lens Aperture: Front – 27.2mm; Rear – 12.1mm

Back Focal Length: Tele – 13.5mm; Wide – 14.7mm

Distortion:-

2/3 Type: Tele +3.5% (y=5.5); Wide -2.6% (y=5.5)

1/2 Type: Tele +1.7% (y=4.0); Wide -1.9% (y=4.0)

Flange Back Length: 17.526mm

Mount: C-Mount

Filter Size: M35.5 P=0.5mm
