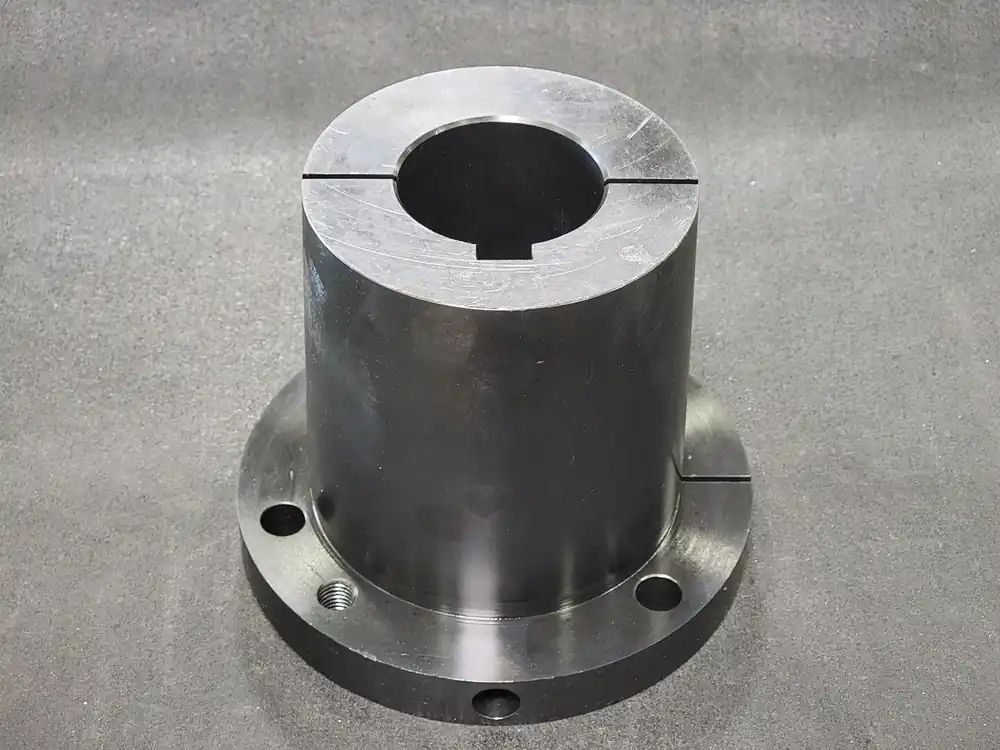

2-15/16" Bore Split Taper Bushing U1 2 15/16

2-15/16″ Bore Split Taper Bushing U1 2 15/16

Original price was: $98.00.Current price is: $29.40.

SKU: SK0042560-US20260630-101428 Category: Tag:

Specifications
Model U1215
Condition Surplus New
General
Type Split Taper
Bore Diameter 2-15/16 “
Other Specifications
Inside Diameter: 2-15/16 in.
Flange Outside Diameter: 8.375 in
Flange Thickness: 1.125 in
Length Through Bore: 7.125 in
Barrel Diameter (Large End): 6.0 in
Keyway Size: 3/4 x 3/8 in
Bolt Circle Diameter: 7.0 in
Number of Bolt Holes: 3
Screw Thread Size: 5/8-11
Screw Length: 2.75 in
Material: Ductile Iron
