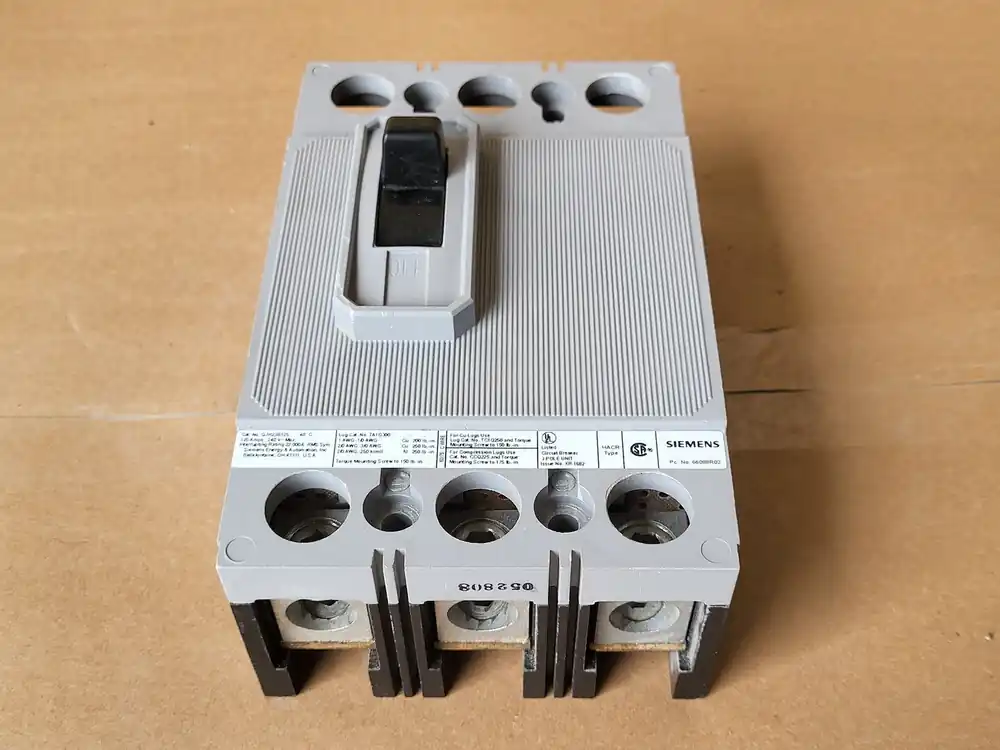

The Siemens QJH23B125 is a 3-pole molded case circuit breaker designed for reliable protection in electrical distribution systems. It has a rated current of 125 A and supports voltages up to 240 VAC. The breaker features a thermal-magnetic trip unit with long-time and instantaneous protection. It offers an interrupting capacity of 22 kA at 240 VAC, suitable for industrial and commercial applications. The breaker is mounted using a bolt-on connection and is certified to UL 489 and CSA C22.2 standards.
Specifications
Model
QJH23B125
Year:
2008
Condition
Used – Like New
General
Amps
125 amps
Series
QJH
# of Poles
3
Mounting Style
Bolt-On
Voltage
240 volts
Phase
3-phase
AFCI
No
GFCI
No
Other Specifications
Overview:
Part Number: QJH23B125
Frame: QJH series
Type: Molded Case Circuit Breaker (MCCB)
Number of Poles: 3-pole
Rated Current: 125 A
Rated Voltage: 240 VAC
Interrupting Capacity:
22 kA at 240 VAC
Trip Type: Thermal-magnetic (Long-time and Instantaneous)
Mounting Style: Bolt-on
Certifications: UL 489, CSA C22.2
