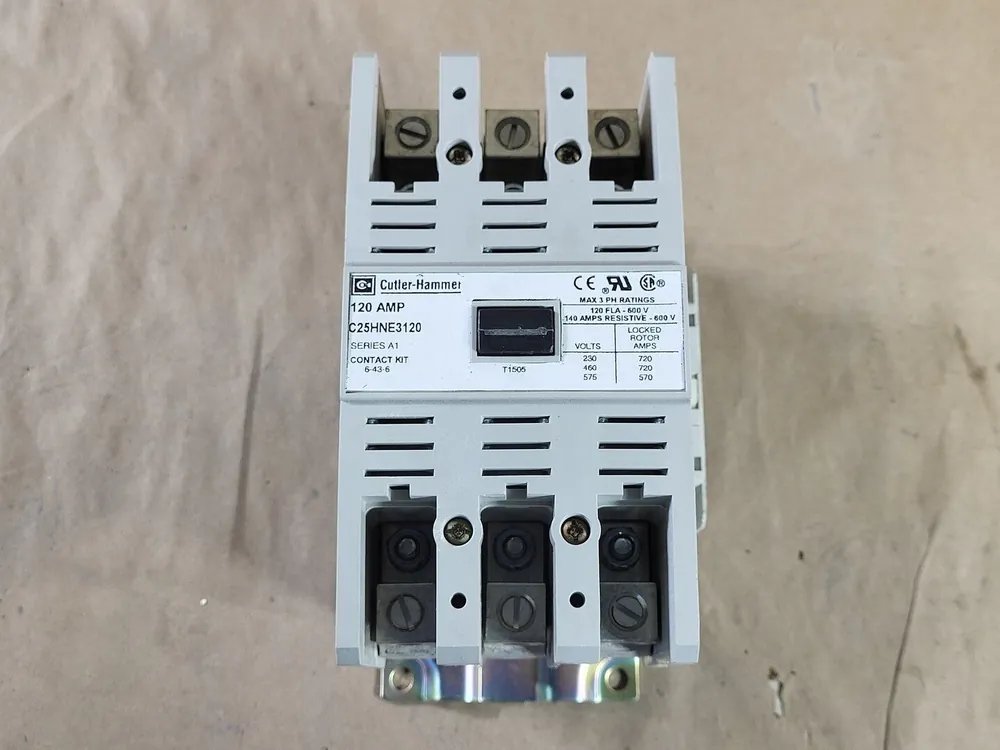

The Eaton C25HNE3120 is a robust, non-reversing, definite-purpose contactor, 3-pole configuration. Rated for 120A inductive duty (140A resistive). It features lug-type box lug terminals, a metal mounting plate, and complies with UL and CSA standards. Ideal for applications like HVAC, compressors, pumps, lighting, and general motor control.
Specifications
Model
C25HNE3120
Condition
Surplus New
Electrical
Voltage
600 volts
Amps
120 amps
Other Specifications
Overview:
Part Number: C25HNE3120A1
Series: C25, Series A1
Type: Definite Purpose Contactor
Number of Poles: 3-pole
Full Load Amperage (FLA): 120 A (inductive)
Resistive Load Rating:140A
Coil Voltage: 110-120VAC, 50/60Hz
Coil Termination: 2 screw terminals
Power Terminals: Box lugs (Posi-Drive Screw)
Contract Configuration: Normally open (NO)
Line Voltage Rating: Up to 600 VAC
Ambient Temperature Range:–40°C to +65°C (-40°F to +149°F)
Certifications: UL Recognized (UL 508), CSA Certified, CE marked, RoHS compliant
