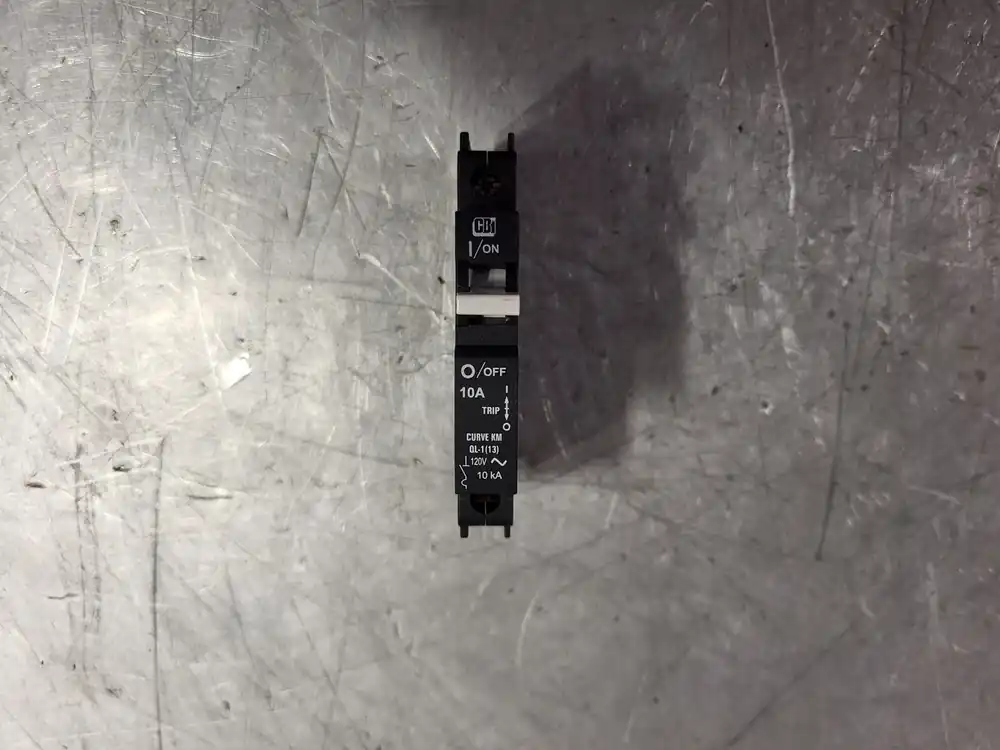

10 Amp, 1 Pole, 120 volts Circuit Breaker QL18KM10

Operating Temperature Range: -40 deg C to +85 deg C

Time Delay Curves: 1, 3, 9, KM, OP

Endurance: 10000 operations – 1500 electrical at rated current and voltage (EIC 60947-2) 6000 electrical operations (UL 489)

Dielectric Strength: 1480V

Humidity: 35 to 85% relative

Altitude: Certification tests done at altitude 2000 metres. Will operate at higher altitudes.

Shock: 16 G

Vibration: 2 G (sinusoidal wave)

Flammability: I3 – Ignition does not persist at 850 deg C after glow wire is withdrawn with an oxygen index of >=28

Toxicity: F1 – Smoke index of <= 20 which determines the fume class

Pollution Degree: PD2 – Normally only non-conductive pollution occurs. Temporary conductivity caused by condensation is to be expected
