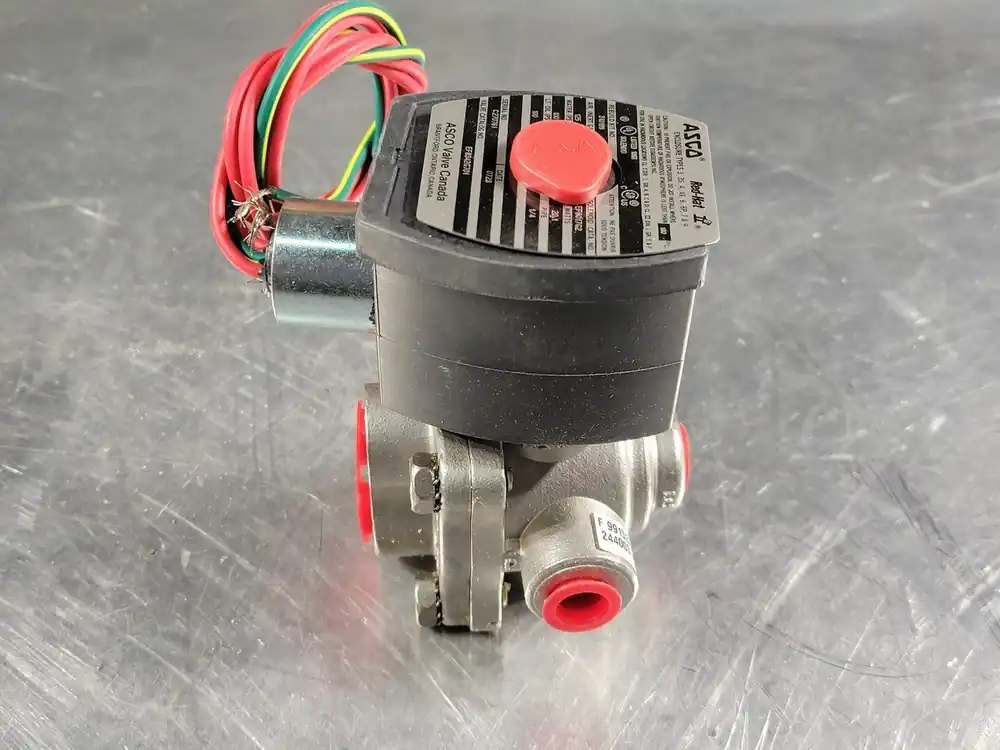

1/4″ NPT Solenoid Valve EF8342G701

AC/DC: AC

Inlet Pipe Size (NPT): 1/4 in.

Orifice Size: 3/16 in.

Coil Class: FB

Body Material: Brass

Cv/Kv (Pressure Port): 0.70 Cv – 0.61 Kv

Watt Rating @ 60 Hz: 20.10 W

Max Ambient Temperature: 125 deg. F – 52 deg. C

Max Fluid Temperature: 160 deg. F – 71 deg. C

Min Ambient Temperature: 32 deg. F – 0 deg. C

Max Operating Pressure (Air): 125 – 8.6 bar

Max Operating Pressure (Water): 100 psi – 6.9 bar

Max Operating Pressure (Oil): 100 psi – 6.9 bar
