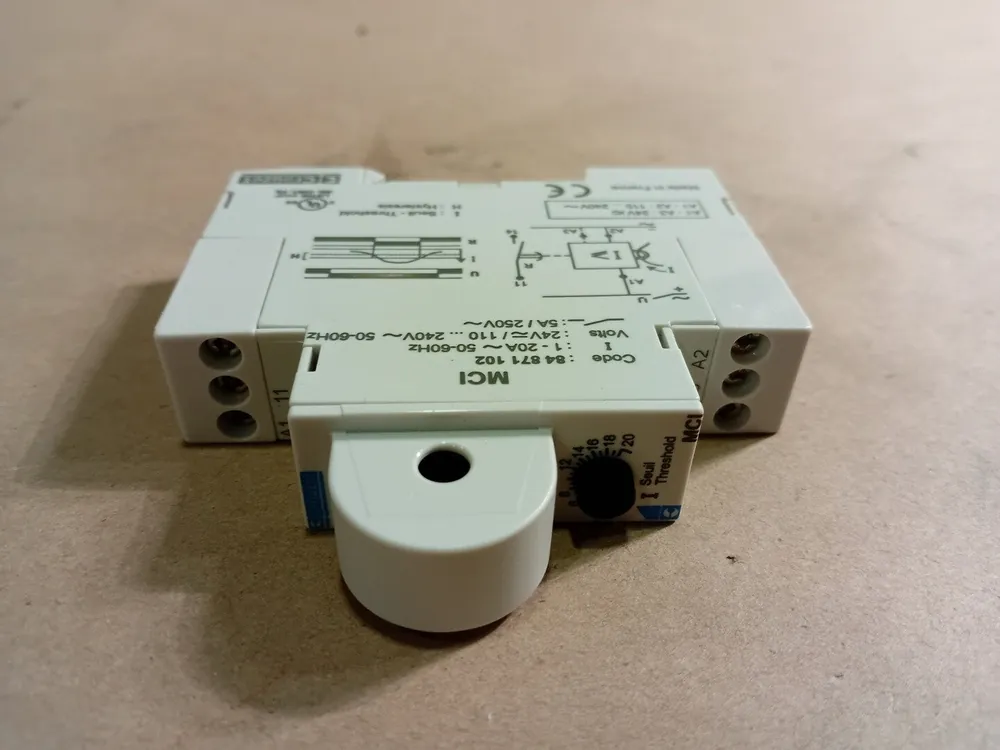

1-20 Amps, 24 VDC Current Control Relay MCI 84871102

Input power: 24 VAC/VDC, 110 to 240 VAC, 50/60 Hz

Input power operating range: 24 VAC/VDC +-15% 90 to 260 VAC

Maximum power consumption: 10 VA

Hysteresis: Fixed at -15% Threshold

Display accuracy of preset threshold: +-10% of full scale

Repetition accuracy with constant parameters: +-.5%

Temperature drift: 0.08%

Voltage drift: 0.01%/degree C

Power up delay: 150 ms max.

Delay on threshold overrun T1: 400 ms

Delay on downward crossing on threshold T2: 150 ms

Output relay: SPST NO

Maximum output rating: 5 Amp

Operating relay: +14 to +140F (-10C to 60C)

Storage temperature: –22 to +150F (-30C to 70C)

Weight: 3 oz. (85g)
